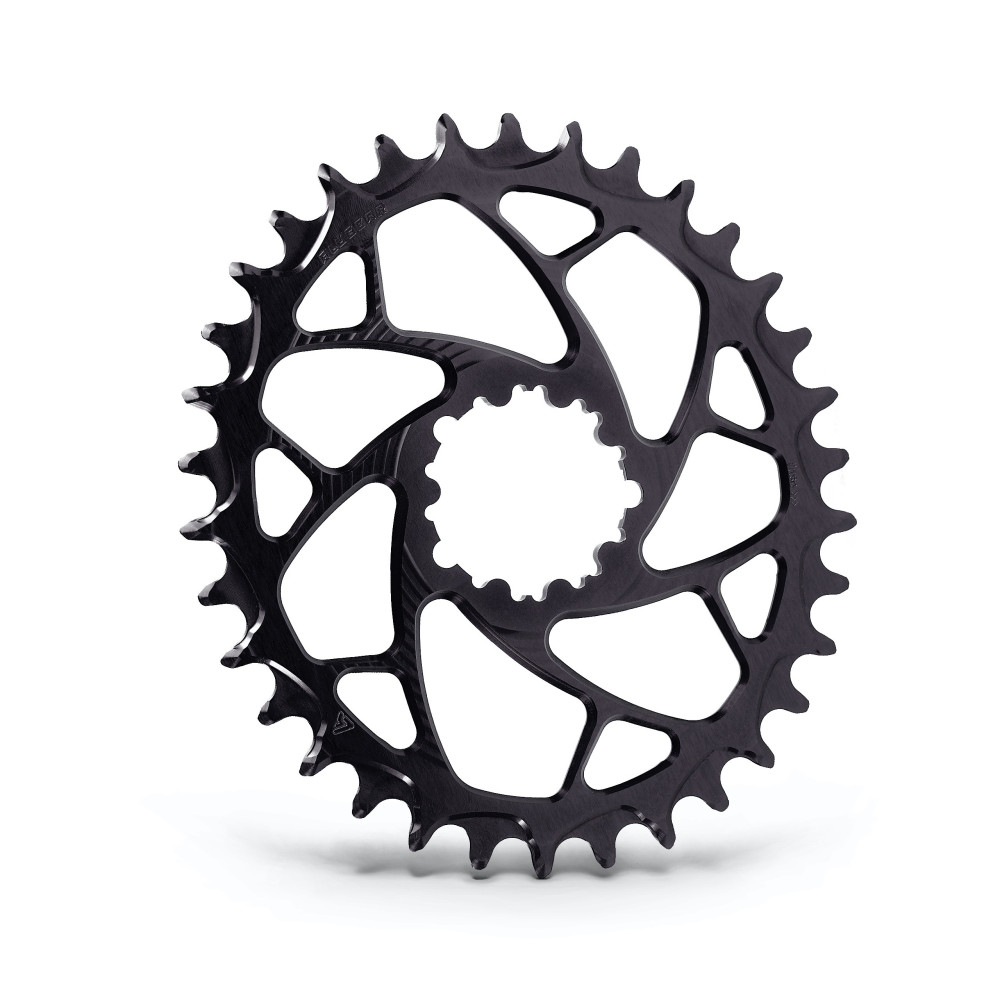

The original design ALUGEAR chainring “ELM”


TECHNICAL SPECIFICATIONS
Offset: 26T-38T 3,0mm; 40T-42T 2,0mm
Chainline: 26T-38T 52,0mm; 55,0mm; 56,5mm (depending on used crank)
Weight: 26T- 46g; 28T- 51g; 30T- 57g; 32T- 62g; 34T- 69g; 36T- 73g; 38T- 79g; 40T- 83g; 42T- 86g
Diameter: 26T- 120mm; 28T- 128mm; 30T- 136mm; 32T- 144mm; 34T- 152mm; 36T- 162mm; 38T- 170mm; 40T- 178mm; 42T- 186mm
Timing: 108° (top dead center)
Ovality: 12%
Material: 7075-T6 aluminum
Made: CNC milling
Surface coating: Anodizing


COMPATIBILITY
For Shimano Direct Mount 12 speed cranksets: XTR M9100/9120/9125/9130, XT M8100/8120/8130, SLX M7100/7120/7130, Deore M6100/6120/6130, MT900, MT610
Cranksets M9100/9120, M8100, M7100, M6100, MT900, MT610 will use with a Boost chainring (3mm offset), and it is compatible with 142 mm or 148 mm O.L.D. frames
Cranksets M9125, M8120, M7120, M6120 have a longer spindle and also use a Boost chainring (3mm offset). It is compatible with 148 mm O.L.D. frames
Cranksets M9130, M8130, M7130, M6130 have an even longer spindle and also use a Boost chainring (3mm offset). These cranks should use with 157 mm O.L.D. frames
MTB chainrings you may use the following chains: all 10sp; 11sp; 12sp Shimano Hyperglide+ and 10sp, 11sp, 12sp SRAM


INFORMATION
ALUGEAR chainrings are some of the lightest chainrings on the market. Using our experience and vigorous testing, we tweaked the arm design and strategically machined the chainrings so that only minimal sacrifices were made in impact strength in exchange for large gains in weight reduction
The chainrings are CNC machined from 7075 T6 aluminum and hard coat industrially anodized to provide protection from mechanical impacts, a good look, and an excellent tactile feel to each of the chainrings that lasts a long time
A unique tooth profile eliminates chain noise, reduces wear, and provides smooth operation on the entire system of all the most common combinations, such as 10, 11, and 12-speed drives. The Narrow Wide teeth guide the chain reliably
The tooth profile is specially designed for use with MTB chains.
ALUGEAR chainrings are the best choice if you are looking for a technologically sound chainring with a unique design and low weight


RECOMMENDATIONS
We recommend the use of a clutch system rear derailleur for the best chain security
It is also a good idea to use a new chain with your new ALUGEAR chainring
